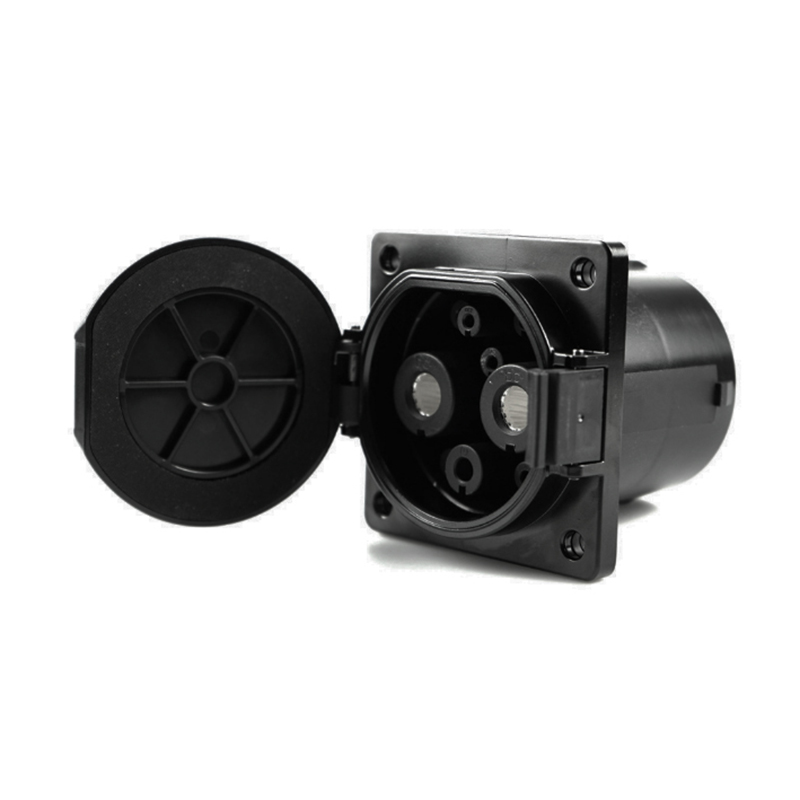

GB/T DC Charger Socket
share
Product Feature
Meet GB/T 20345.3-2015 Standard;
Nice appearance,hand-held ergonomic design,easy plug;
Case Material: Thermoplastic.Flame Retardant Grade UL94V-0;
Terminal Material: Copper Alloy Silver Plating;
Product entire insertion and extraction force <100N.
Meet GB/T 20345.3-2015 Standard;
Nice appearance,hand-held ergonomic design,easy plug;
Case Material: Thermoplastic.Flame Retardant Grade UL94V-0;
Terminal Material: Copper Alloy Silver Plating;
Product entire insertion and extraction force <100N.
Description
Mechanical Properties
Mechanical Life no-load plug in/pull out>10000 times;
Excellent protection performance.protection grade IP65;
Impact Force: Can afford 1m drop and 2t vehicle run over pressure;
Reliability of materials, antiflaming, pressure-resistant, abrasion resistance, impact resistance and high oil.
Item | GB/T DC Charger Socket |
Standard | GB/T 20234.3-2015 |
Product Model | BRD-GBT-EVS-80/125/150/200A |
Rated Current | 80A,125A,150A,200A |
Operation Voltage | DC 750/1000V |
Insulation Resistance | >2000MΩ(DC 500V) |
Withstand Voltage | 3500V |
Contact Resistance | 0.5mΩ Max |
Terminal Temperature Rise | <50K |
Operating Temperature | -40°℃~+45℃ |
Impact Insertion Force | >300N |
Coupled Insertion Force | >45N<90N |
Waterproof Degree | IP65 |
Flame Retardant Grade | UL94 V-0 |
Certification | CE, CQC Approved |
