GBT Adjustable Portable EV Charger
For the wall side plug, we can install the wall side plug according different countries situation:

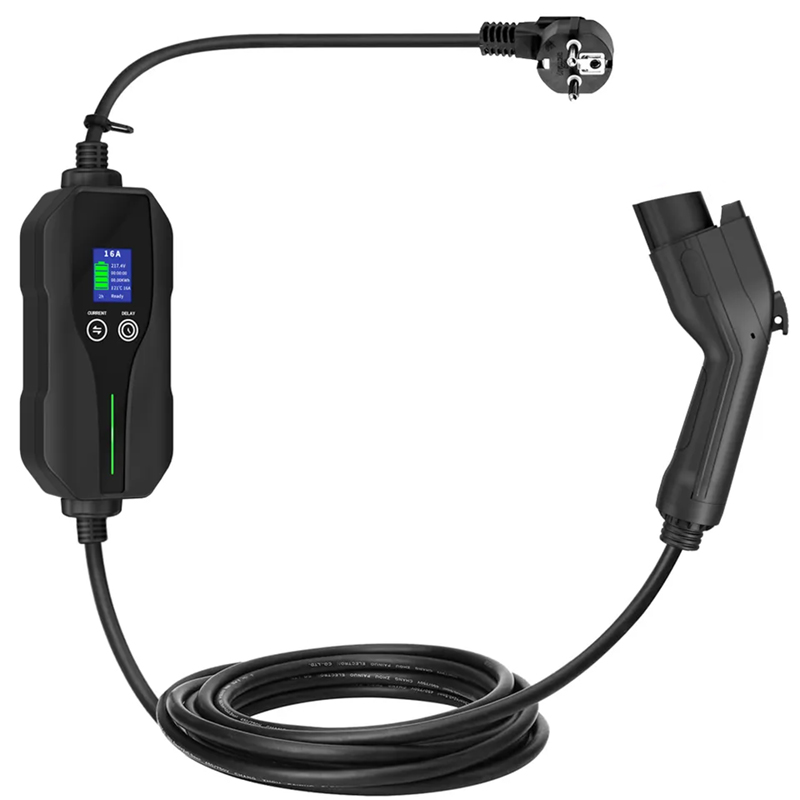

16A-------- GB2099.1-2008 16A 3Pin Plug

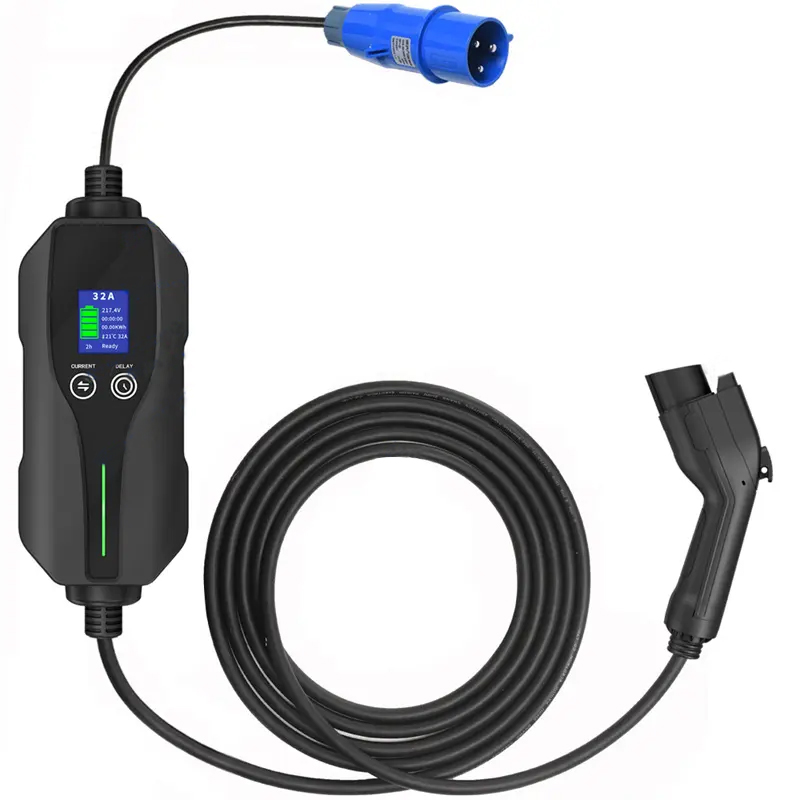

32A-------- Blue CEE Plug
Red CEE Plug
3C, CQC approved.
Mechanical Properties
Multiple current options: 32A Max;
Multiple appointment times optional: 1H / 2H / 4H / 8H;
Mechanical Life no-load plug in/pull out>10000 times;
Excellent protection performance.protection grade IP67;
Reliability of materials,antiflaming,pressure-resistant;
abrasion resistance.impact resistance and high oil;
Multiple colors available: Black,Yellow, Green, Blue etc;
Shell Material: ABS and PC Flame Retardant Grade UL94 V-0;
(10Meter Max) The length of the cable can be customized.
Electrical Performance
Item | GBT Portable EV Charger ( Adjustable or Fixed Current ) | ||
Standard | GB/T18487.1-2015，NB/T42077-2016，GB2099.1-2008 | ||
Product Model | BRD--GBT-16S | BRD--GBT-32S | BRD--GBT-32T |
Rated Current | 6A / 8A / 10A / 16A(Adjustable) | 10A / 16A / 20A / 24A / 32A(Adjustable) | 8A / 10A / 13A / 16A(Adjustable) |
Operation Voltage | AC 220V-250 V | AC 380V-400 V | |
Appointment time | 1H / 2H / 4H / 8H(Adjustable) | ||
Leakage Protection | Type A RCD or Type A RCD+DC 6mA (Optional ) | ||
Withstand Voltage | 2000V | ||
Mechanical Life | No-Load Plug in / Pull Out >10000 Times | ||
Operating Temperature | -30°℃~+55℃ | ||
Waterproof Degree | IP65/ Box IP67 | ||
EV Control Box Size | 220mm (L) X 85mm (W) X 54mm (H) | ||
LCD Display | Temperature, Charging Time, Actual Current, Actual Voltage, Actual Charging Power，Delay Time | ||
Protection | Leakage Current Protection, Over Current Protection, Over Voltage Protection, Under Voltage Protection, Over Temperature Protection, Temperature Protection, Short Circuit Protection, Surge Protection, Overload Protection. | ||
