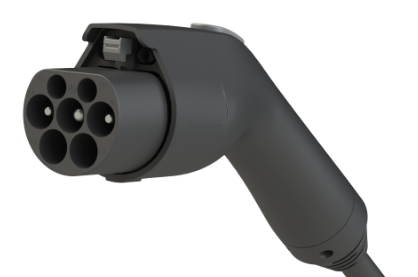

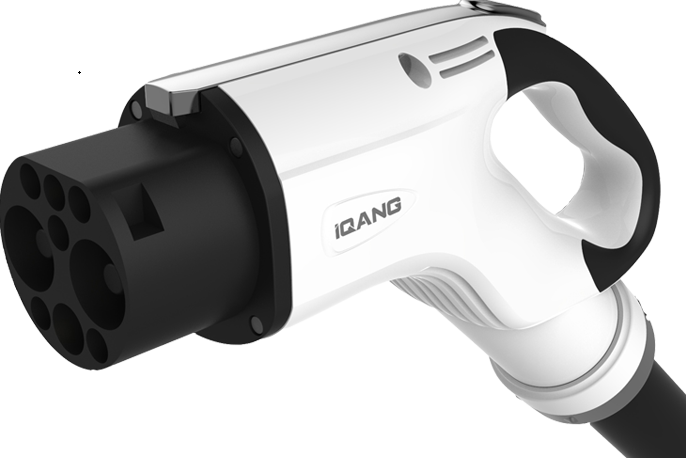

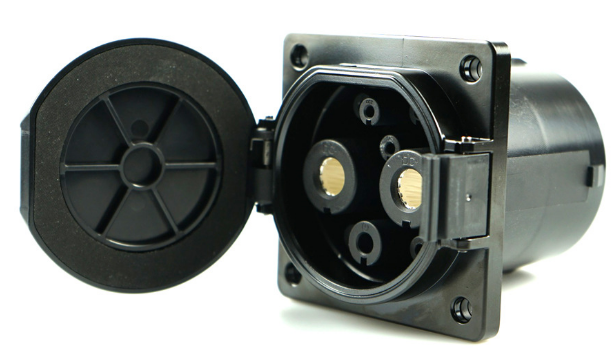

GB/T Charger Connector & Socket

Product Feature

Meet GB/T 20345.2-2015 Standard
Nice appearance,hand-held ergonomic design,easy plug
Case Material: Thermoplastic.Flame Retardant Grade UL94V-0
Terminal Material: Copper Alloy Silver Plating
Product entire insertion and extraction force <100N

Mechanical Properties

Mechanical Life no-load plug in/pull out>10000 times
Excellent protection performance.protection grade IP67
Impat Force:Can afford 1m drop and 2t vehicle run over pressure
Reliability of materials,antiflaming,pressure-resistant
abrasion resistance.impact resistance and high oil
