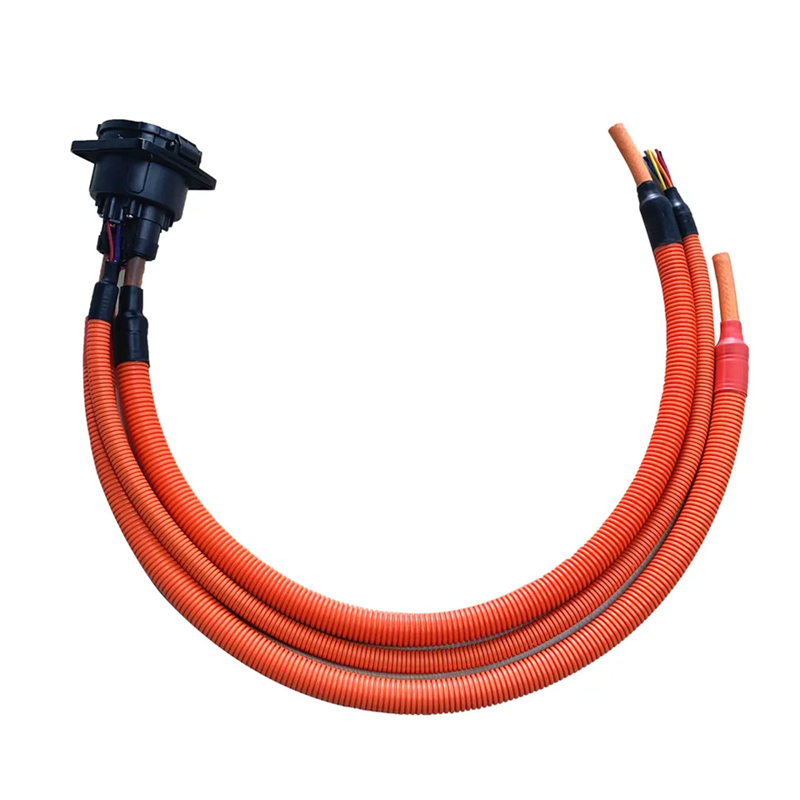

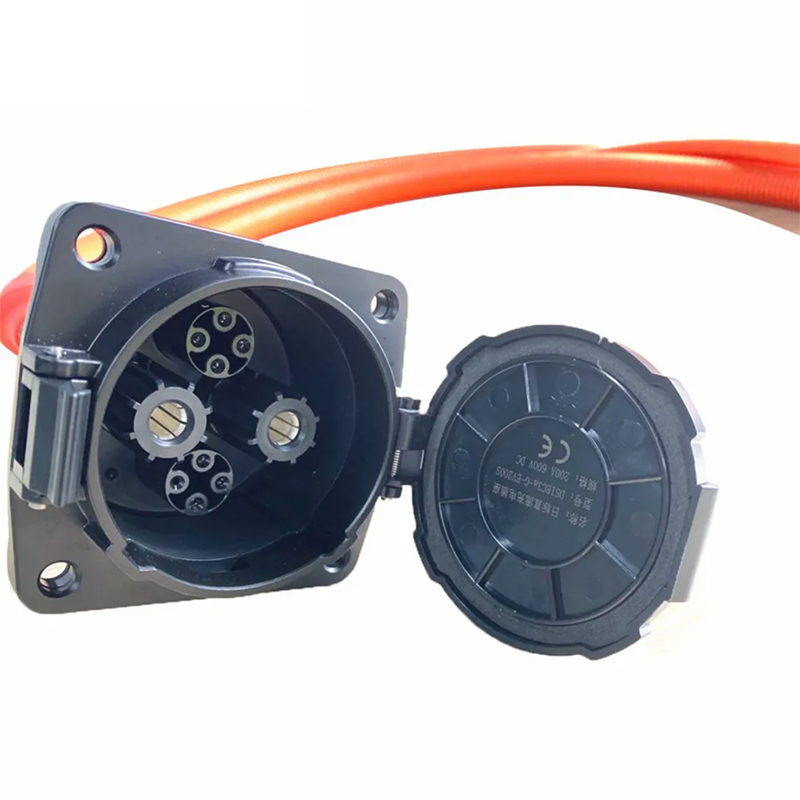

CHAdeMO Inlet Socket With Cable

share
copy Link
Facebook
X
LinkedIn
Pinterest
Rated Current: 80A/125A/150A/200A
Operating Voltage: DC1000V
Withstand Voltage: 3200V
Brand iBroad
Material TPE + Copper alloy, Silver plating
Color Orange + Black / Black
Inquire
Description

Specifications:


Insulation Resisitance: >1000MΩ(DC500V)

Contact Pin: Copper alloy, Silver plating

Working temperature: -60°C ~+45°C

Flame Retardant Grade: UL94 V-0

Contact Resistance: 0.5mΩ Max

Waterproof: IP54

Certificate: CE, TUV Approved

Length: 1m or can be customized
