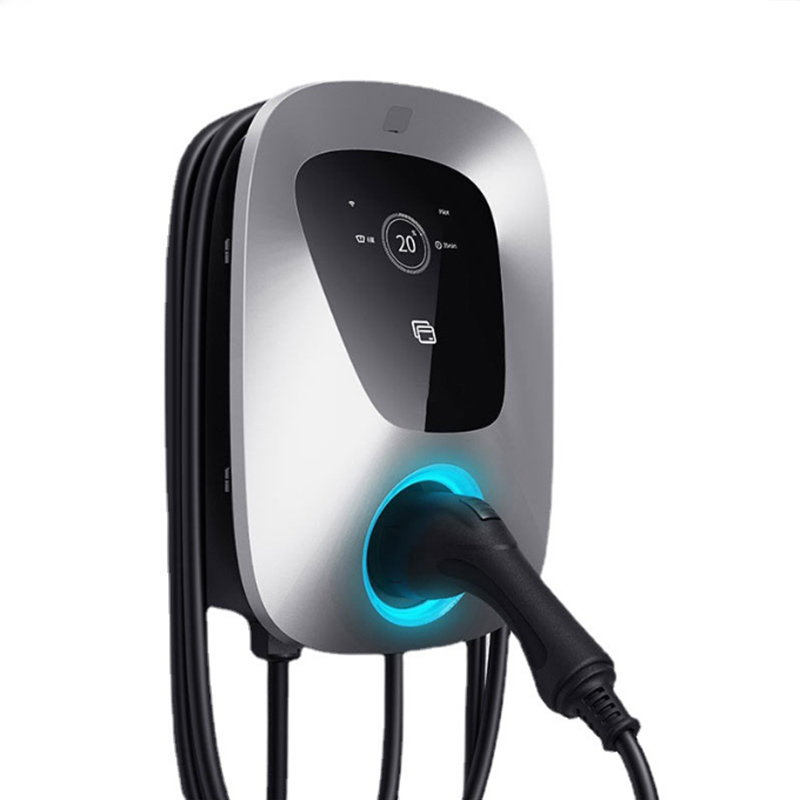

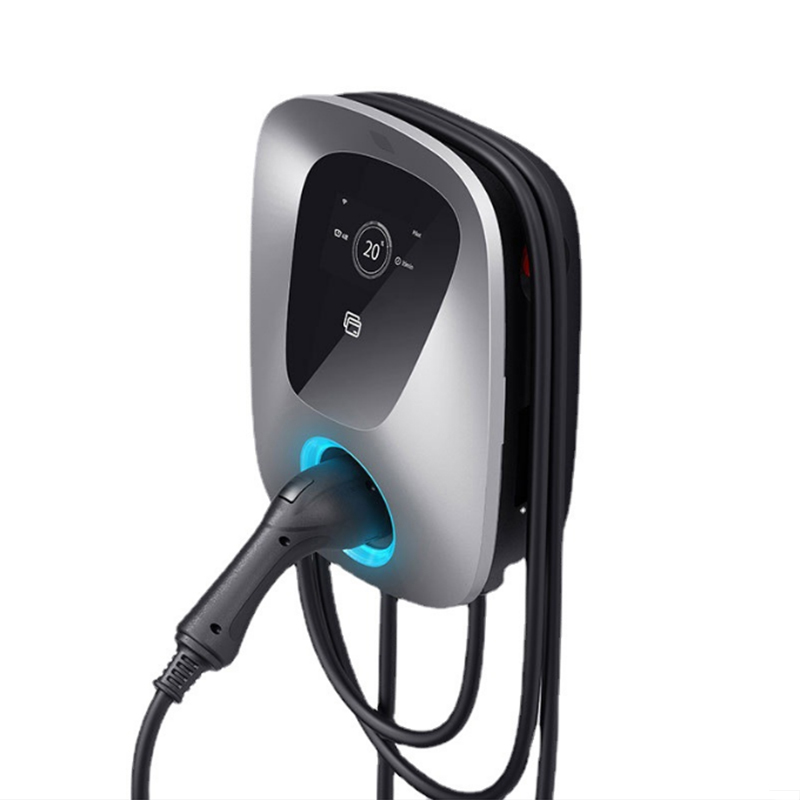

11KW 22KW Wall Mounted EV Charging Station
16A, 32A, single phrase and 3-phrase type available;
4.3 inch LCD Screen , LED Status Indicator;
With functions RFID Card ( Optional), 4G , WIFI , Phone APP (Apple or Google Store);
Use security protection;
TUV, CE Approved.
Electrical Performance
Item | Wall Mounted EV Charging Station | |||
Standard | IEC 61851-1,1EC 61851-22 | |||
Product Model | BRD-EVS-11KW | BRD-EVS-22KW | ||
Rated Current | 11KW, 16Amp | 22KW, 32Amp | ||
Input Voltage | 3-Phase AC 400V±10% | |||
AC Input Connection | 3Ph + N + PE (L1.L2.L3.N.PE) | |||
AC Input Frequency | 50/60 Hz | |||
Internal Residual Current Detection | Type A + DC 6mA( Type B RCD) | |||
Shell Material | PC / ABS | |||
HM Interface | 4.3 inch LCD Screen , LED Status Indicator | |||
Function | RFID Card ( Optional),4G , WIFI ,Phone APP (Apple or Google Store ) | |||
PEN Function | Protective Earth and Neutral ( Optional ) | |||
OCPP | Full OCPP 1.6J support (Optional) | |||
Charging Mode | Delayed Charging , Remole Control to Start , Wipe Card to Start | |||
States indicating | LED indicating light in Red,Green and Blue | |||
Working humidity | 5% - 95% without condensation | |||
Operating Temperature | -30C to +50°C (-22F 1o +122F) | |||
MTBF | 100000 hours | |||
Protection Degree | IP65 | |||
Application place | Indoor / Outdoor | |||
Dimensions | 340mm (L)X 240mm (W) X 120mm (H) | |||
Certification | TUV,CE Approved | |||
Protection | Leakage Current Protection; Over Current Protection; Over Voltage Protection; Under Voltage Protection; Over Temperature Protection; Temperature Protection; Short Circuit Protection; Surge Protection; Overload Protection. | |||
